Service Columns / Service Pole

Subcategories

•

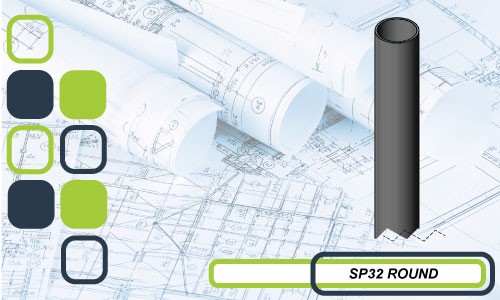

  SP32 Series Round Service Columns

  Cableaway's SP32 Series is our slimline round service column, a 32mm diameter extruded aluminium column that runs from open ceiling space down to bench height to deliver power and data directly to a workstation — without wall chasing or floor trenching. The compact 32mm profile suits single-user desk clusters and workstations where a discreet, low-visual-impact column is preferred over a larger duct.

  The SP32 Series is a single-division column, carrying one continuous cable channel behind a removable cover. Each column ships complete with a footplate, ceiling shroud and height-adjustable mechanism, so it can be trimmed to fit ceiling heights on site, plus all fixings required for installation. An optional tee bar mounting kit is available for suspended ceiling grids, and columns can be pre-cut to custom heights on request.

  Available in 3m, 4m and 6m lengths and in natural anodised aluminium, pearl white or satin black finishes to match the surrounding fitout, the SP32 Series suits open-plan offices, classrooms, retail counters and other environments where a single power and data run needs to reach a workstation cleanly from above.

•

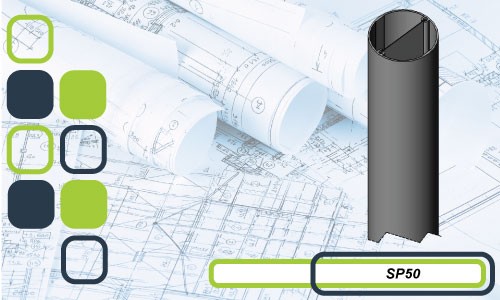

  SP50 Series Round Service Columns

  Cableaway's SP50 Series is a 50mm diameter round extruded aluminium service column that distributes power, data and telecommunications from open ceiling space directly to workstations below, eliminating the need for wall chasing or floor trenching. The 50mm profile gives more internal cable capacity than the slimline SP32 Series while keeping a neat round footprint.

  SP50 columns are available in single-division (one channel) or dual-division (two channel) configurations, allowing power and data cabling to be run in separate, segregated channels within the same column where required. Each column includes a footplate, ceiling shroud and height-adjustable mechanism for a clean fit to the ceiling, along with all fixings; an optional tee bar mounting kit suits suspended ceiling installs and columns can be pre-cut to custom heights on request.

  Choose from 3m, 4m or 6m lengths in natural anodised aluminium, pearl white or satin black finishes. The SP50 Series suits open-plan offices, classrooms and laboratories, retail showrooms and healthcare environments where a workstation needs a dedicated power and data feed from above.

•

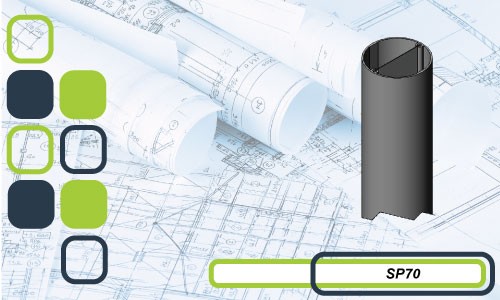

  SP70 Series Round Service Column

  Cableaway's SP70 Series is a 70mm diameter round extruded aluminium service column, the largest of our round profiles, built to carry higher cable volumes from open ceiling space down to bench height without wall chasing or floor trenching. The larger 70mm bore suits workstations or shared benches with heavier power and data demands, or where multiple outlets are needed from a single column.

  Available in single-division (one channel) or dual-division (two channel) configurations to keep power and data circuits separated, each SP70 column is supplied complete with a footplate, ceiling shroud, height-adjustable mechanism and fixings. An optional tee bar mounting kit is available for suspended ceiling grids, and columns can be pre-cut to custom heights on request.

  Offered in 3m, 4m and 6m lengths in natural anodised aluminium, pearl white or satin black finishes, the SP70 Series is well suited to open-plan offices, university laboratories, retail and factory floors, and medical environments needing a robust round service column.

•

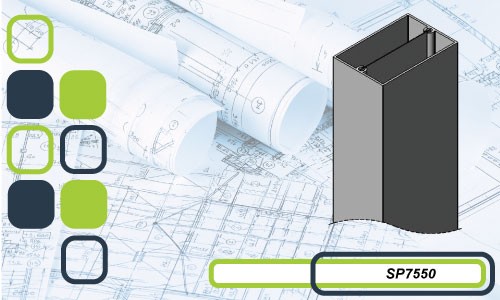

  SP7550 Series Service Columns

  Cableaway's SP7550 Series is a 75×50mm rectangular extruded aluminium service column that brings power, data and telecommunications from open ceiling space directly to a workstation, avoiding wall chasing or floor trenching. The rectangular profile gives a larger internal volume than the round SP series, making it well suited to workstations that need extra cable capacity or a wider range of outlet and data modules.

  SP7550 columns are available in single-division (one channel) or dual-division (two channel) configurations, so power and data cabling can be segregated within the one column where required. Each column includes a footplate, ceiling shroud and height-adjustable mechanism for a clean ceiling fit, plus all fixings; an optional tee bar mounting kit suits suspended ceiling installs, and columns can be pre-cut to custom heights on request.

  Available in 3m, 4m and 6m lengths in natural anodised aluminium, pearl white or satin black finishes, the SP7550 Series suits open-plan offices, classrooms and laboratories, retail showrooms and medical or healthcare fitouts.

•

  SP8080 Series Service Column

  Cableaway's SP8080 Series is an 80×80mm square-profile extruded aluminium service column, delivering power, data and telecommunications from open ceiling space directly to a workstation without wall chasing or floor trenching. The larger square profile provides generous internal volume for cable management, suiting workstations or shared benches with higher power and data outlet counts.

  Available in single-division (one channel) or dual-division (two channel) configurations to keep power and data circuits separated, each SP8080 column ships complete with a footplate, ceiling shroud, height-adjustable mechanism and fixings. An optional tee bar mounting kit is available for suspended ceiling grids, and columns can be pre-cut to custom heights on request.

  Offered in 3m, 4m and 6m lengths in natural anodised aluminium, pearl white or satin black finishes, the SP8080 Series suits open-plan offices, laboratories, retail and factory floors, and healthcare environments needing a high-capacity service column.

•

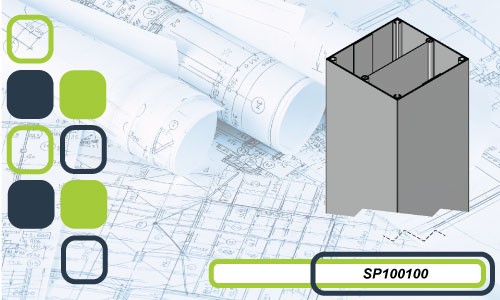

  SP100100 Series Service Columns

  Cableaway's SP100100 Series is our largest-capacity service column, a 100×100mm square-profile extruded aluminium column that distributes power, data and telecommunications from open ceiling space directly to a workstation without wall chasing or floor trenching. The generous 100×100mm profile suits shared benches, multi-user workstations or fit-outs needing a high density of outlets from a single column.

  SP100100 columns are available in single-division (one channel), dual-division (two channel) or quad-division (four channel) configurations, giving the flexibility to separate power, data and AV cabling into their own dedicated channels within the one column. Each column includes a footplate, ceiling shroud and height-adjustable mechanism, plus fixings; an optional tee bar mounting kit suits suspended ceiling installs, and columns can be pre-cut to custom heights on request.

  Available in 3m, 4m and 6m lengths in natural anodised aluminium, pearl white or satin black finishes, the SP100100 Series is the specification of choice for open-plan offices, laboratories, retail fitouts and healthcare environments with higher cable capacity requirements.

•

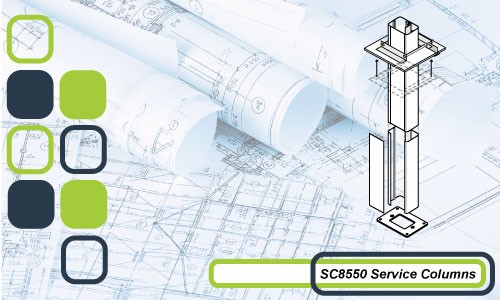

  SC8550 Series Service Columns

  Cableaway's SC8550 Series is an 85×50mm rectangular extruded aluminium service column that delivers power, data and telecommunications from open ceiling space directly to a workstation, without wall chasing or floor trenching. Built as a dual-division column as standard, the SC8550 keeps power and data cabling separated into two dedicated channels within the one column.

  Each SC8550 column is supplied complete with a footplate, ceiling shroud and height-adjustable mechanism for a clean fit to the ceiling grid, along with all fixings; an optional tee bar mounting kit is available for suspended ceiling installs, and columns can be pre-cut to custom heights on request.

  Available in 3m, 4m and 6m lengths, the SC8550 Series offers the widest finish range in the Cableaway service column line-up — natural anodised aluminium, pearl white, satin black and a textured black ripple finish — suiting open-plan offices, laboratories, retail showrooms and healthcare environments where a dual-division column and a broader colour choice are required.

•

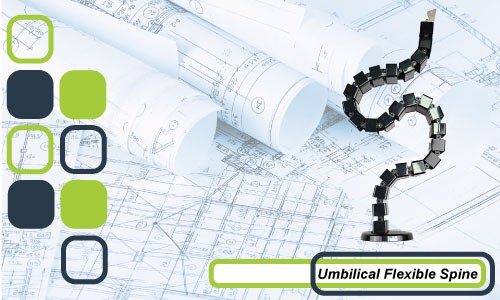

  Umbilical Flexible Spine

  Cableaway's Umbilical Flexible Spine is a flexible alternative to a rigid service column, routing power and data cabling from open ceiling space down to desk height through a soft, bendable spine rather than an extruded aluminium profile. The range includes the Umbilical Flexible Spine Service Column in 1.3m lengths (Black or White), the Umbilical Under Desk unit in Silver at 740mm, and the Pathfinder Vertical Cable Management range – available with a top screw mount and weighted base (780mm), a ceiling collar with weighted base (2800mm), or a combined ceiling and desk collar (2140mm).
