3 Pole Soft Wiring System

Subcategories

•

  In Desk Power

  Cableaway's In Desk Power range recesses flush into desks and workstations, keeping power, USB charging and wireless charging out of sight until needed. The range spans the Pixel in-desk power & USB charging outlet, Partner in-desk power box, Eco desktop power unit (flush or angled faceplate), ARC and Port wireless charging modules, the Axxess 2 or 4-socket GPO module with USB-A/C or USB-C/C charging and Clipsal-compatible data tile positions, and the Puma panel-mount power & USB module.

  Most modules are available in Black or White and are built in high-strength polycarbonate for everyday commercial use. An Interconnect Lead (sold separately) connects each module back to the 3 Pole Soft Wiring System.

•

  Desk Top Power

  Cableaway's Desk Top Power range sits on top of the desk for fast, tool-free relocation as furniture and floorplans change. The range includes the PACE, PHASE, PHASE PRO and PLUTO desktop power rails and the compact Qiksilva 2-socket rail, plus Tripod bench-mounted table boxes.

  Rails are built from extruded aluminium with USB-A/C or USB-C/C charging up to 150W, mount via a quick-release or fixed desk bracket, and connect back to the mains via an AU plug or inline splitter lead. Available in Black or White, built to AS/NZS3100 and AS/NZS3105.

•

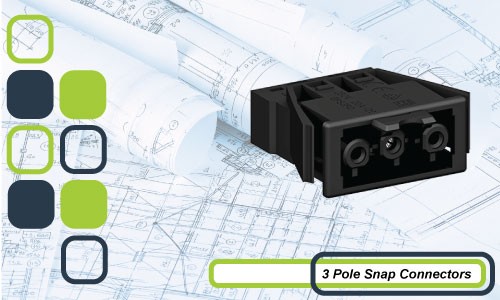

  3 Pole Soft Wiring Snap in Connectors (Push in Terminal)

  Cableaway's 3 Pole Soft Wiring Snap in Connectors use a push-in terminal, so wires click into place without a screwdriver — ideal where installations need to go together, or come apart, quickly. Panel-mounted Male and Female connectors are rated to 20A and 250V AC, housed in durable polyamide with an IP20 rating, and pair with the matching half to complete a connection.

  Built to AS/NZS 61535 and available in Black, White or Red.

•

  3 Pole Soft Wiring Interconnect Leads Available in Black and White

  Cableaway's 3 Pole Soft Wiring Interconnect Leads link and extend runs across the system, from 600mm up to 10 metres, in Black or White — with custom lengths made to order. Each lead is fitted with positive-locking 3 pole connectors rated to 20A, and a Straight Connector (Male to Female) is available where two leads need to be joined directly.

  Built to AS/NZS 61535.

•

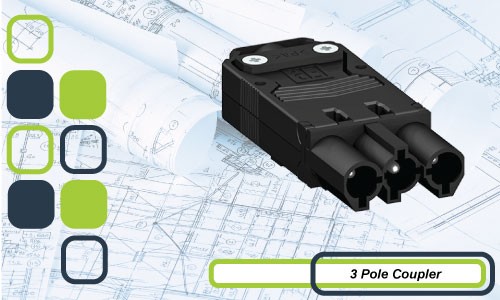

  3 Pole Soft Wiring Installation Coupler (Screwed Terminal)

  Cableaway's 3 Pole Soft Wiring Installation Couplers use a screwed terminal for a permanent, panel-mounted connection point. Male and Female halves are rated to 20A and 250V AC, housed in durable polyamide with an IP20 rating, and are available in Black, White or Red to suit colour-coded wiring systems.

  Built to AS/NZS 61535; installation should be carried out by a licensed electrician.

•

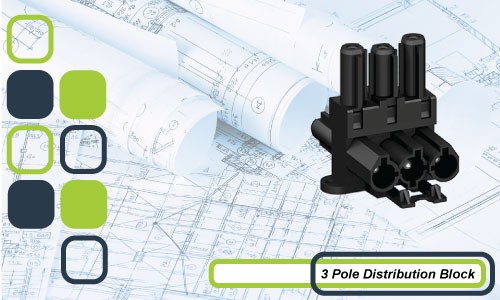

  3 Pole Soft Wiring Distribution Blocks

  Cableaway's 3 Pole Soft Wiring Distribution Blocks split a single supply into multiple outputs, so one feed can power several desks, modules or devices. The range covers a 3 Pole Tee (1 in, 2 out) and Distribution Blocks with 1 in, 3 out or 1 in, 5 out configurations.

  Rated to 20A and built to AS/NZS 61535.

•

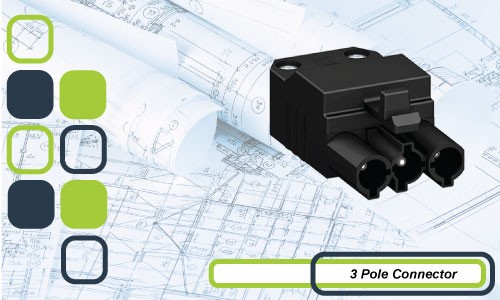

  3 Pole Soft Wiring Rewireable Connectors (Screw in Terminal)

  Cableaway's 3 Pole Soft Wiring Rewireable Connectors use a screw-in terminal that can be opened and rewired on site, making them ideal where a connection may need to be changed after installation. Male and Female sets are rated to 20A and available across a range of manufacturer references, plus a Straight Connector (Male to Female) for joining two leads directly.

  Built to AS/NZS 61535.

•

  Softwire - GPO Outlets

  Cableaway's Softwire GPO Outlets bring the 3 Pole Soft Wiring System out to the point of use — single, double and quad GPO outlets, with or without built-in USB charging (USB-A+C or Dual USB-C, up to 65W per module). Outlets snap into place with the Quick Fit modular system and connect via an 800mm fitted lead or a Wieland (GST08) connector with no lead.

  Available in Black, White, Grey or Red, including removable-tile versions for easy servicing.

•

  3 Pole Soft Wire Starters

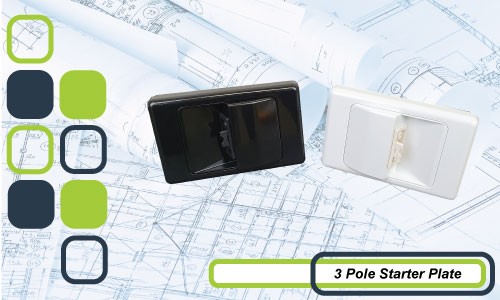

  Cableaway's 3 Pole Soft Wire Starters are the components that begin a soft-wiring run from your building's fixed electrical wiring. The range covers the Starter Wall Plate (2000-series, 1 x 3 pole 20A socket, supplied complete with a snap connector, Black or White), the Starter Cable with inline thermal overload protection (AS/NZS 3-pin AU plug to 3 pole connector, 10A, 1.8m/2.0m/5.0m, Black or White), and the Free-End Cable (20A, a fitted female connector at one end and a free end for on-site termination at the other).

  A Female Installation Coupler and Female Panel Mount Snap Connector are also available to complete the starting connection. Built to AS/NZS 61535; installation should be carried out by a licensed electrician.
