FIBRE TRAY VERT TEE 120w
Fibre duct is a system designed to protect and route fibre optical patch cords, cable assemblies from an ODF, network cabinet or other devices.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.

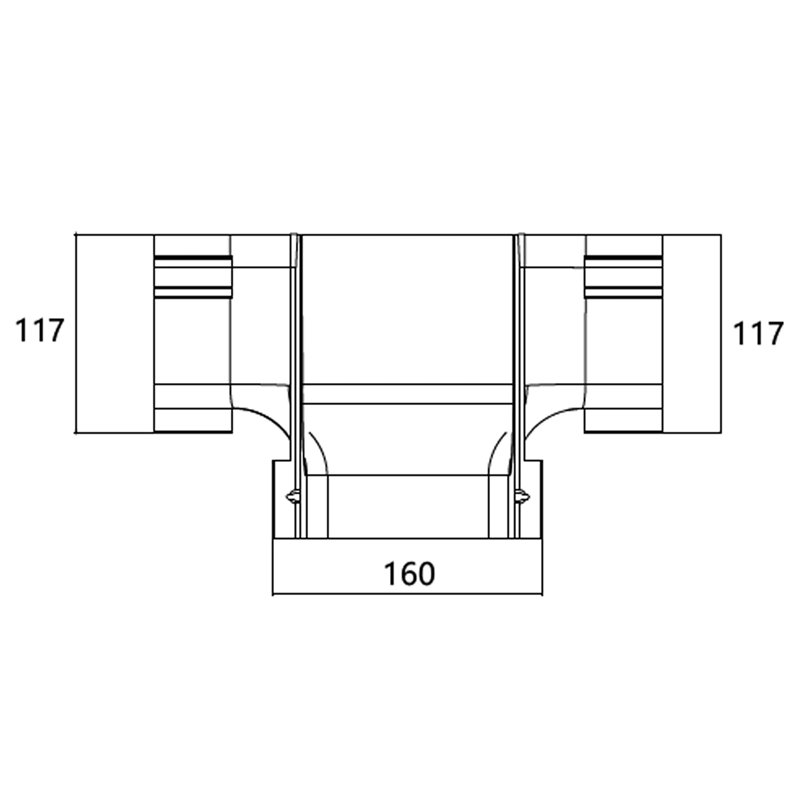

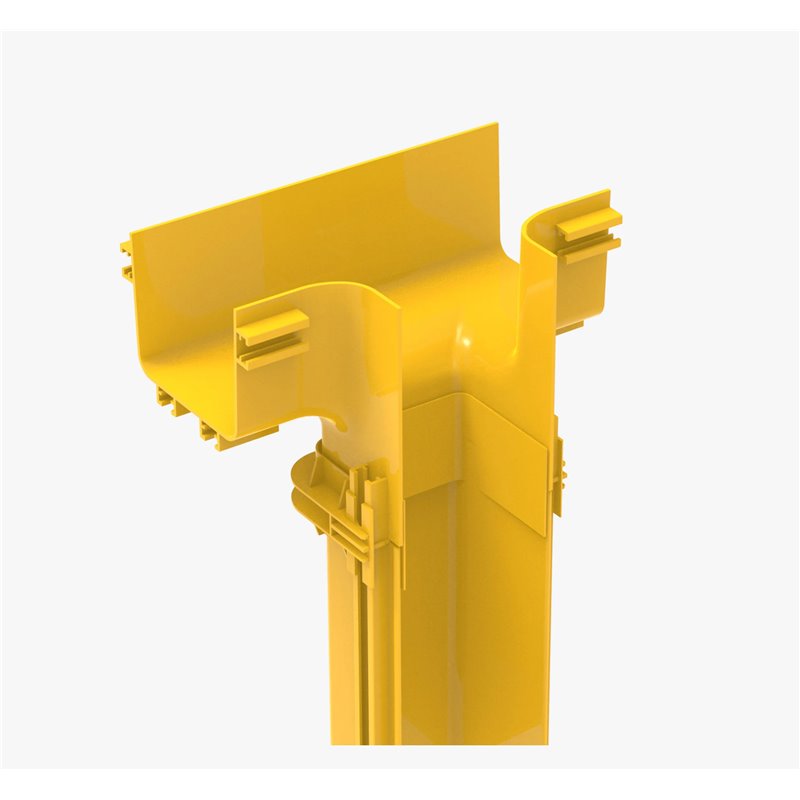

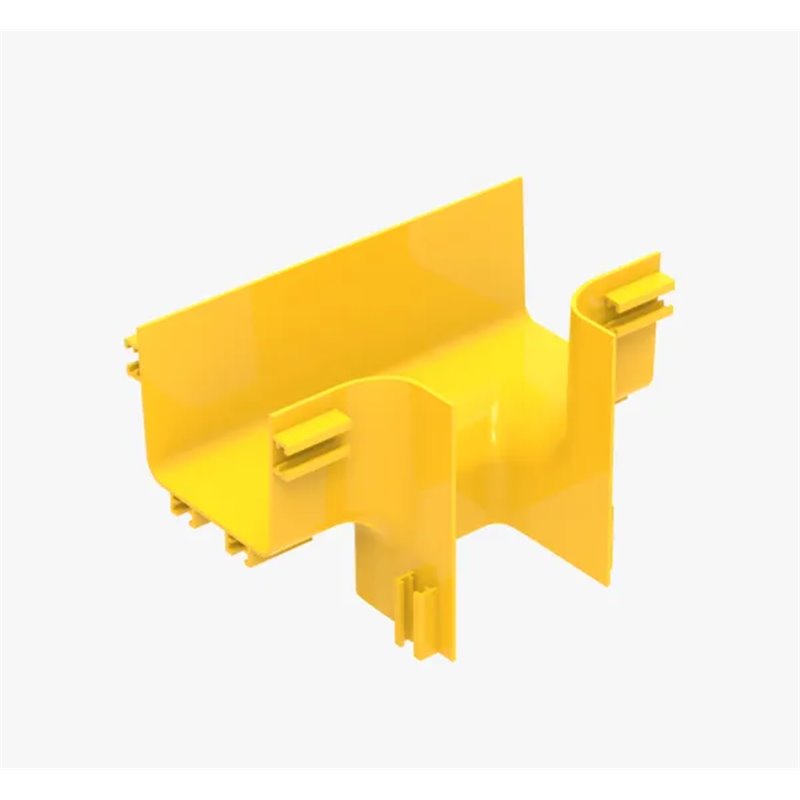

The CF120VTC is a vertical tee connector for the CF120 fibre tray range, part of Cableaway's CF120–CF600 fibre tray and ducting raceway system. It joins a horizontal tray run to a vertical branch, allowing the raceway to split or merge between horizontal and vertical pathways — typically used where a run needs to drop down a wall, riser or rack from a horizontal ceiling or floor route.
TECHNICAL SPECIFICATIONS
|
KEY FEATURES
|
TYPICAL APPLICATIONS
|
Data centre fibre distribution
|
ODF-to-cabinet optical raceways
|
|
Telecommunications exchanges
|
Campus and building fibre backbones
|
|
Comms rooms & MDF/IDF risers
|
Structured cabling fit-outs
|
ORDERING INFORMATION
| Part Number | CF120VTC |
| Description | CF120 Fibre Tray Vertical Tee Connector, Yellow |
| Used With | CF120-2000, CF120-CNT, CF120-TEE, CF120-CRS |
| Warranty | Manufacturer's warranty |
COMPLIANCE & INSTALLATION
Flame-retardant ABS construction rated to GB/T2048-2008 FV-0. Fit before the fibre optic cable is laid, in accordance with structured cabling and fibre optic installation practice.
| Standards | GB/T2048-2008 (FV-0 Flame Retardant) |
| Installation | Should be installed by an authorised installer or qualified data/communications cabler in accordance with AS/NZS 3080 (Telecommunications Cabling) and manufacturer fibre bend-radius guidelines |
CF120VTC
