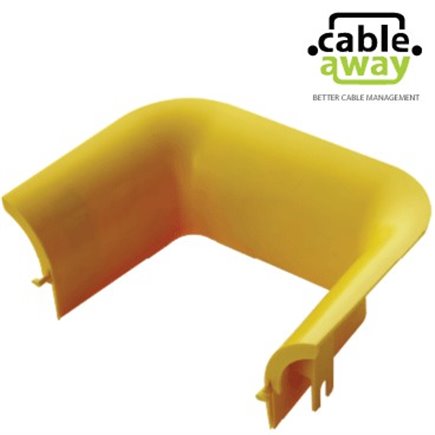

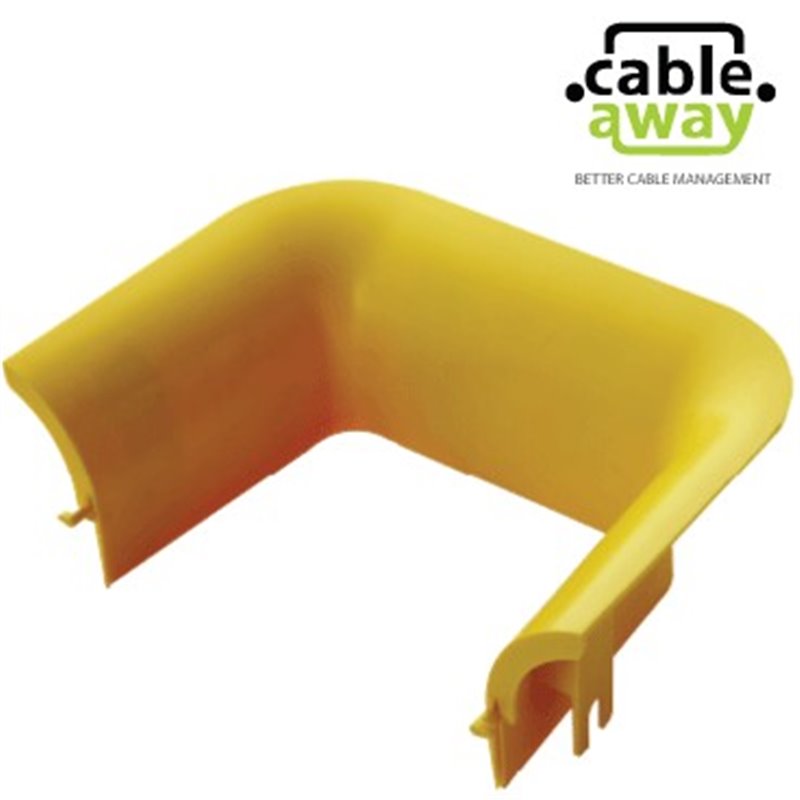

FIBRE CABLE TRAY TRUMPET / END FLARE 120w
Fibre duct is a system designed to protect and route fibre optical patch cords, cable assemblies from an ODF, network cabinet or other devices.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.

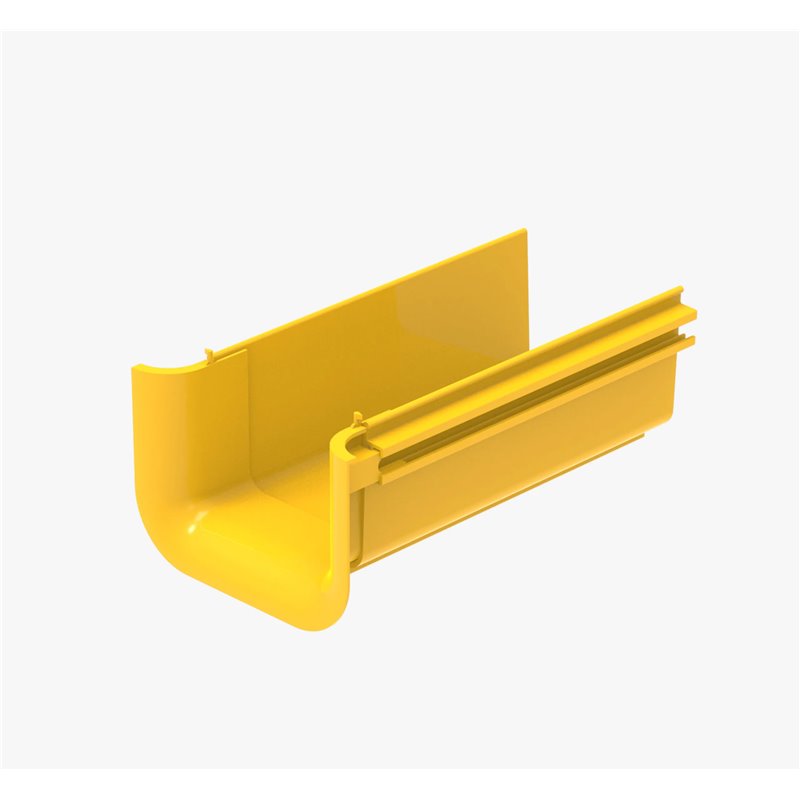

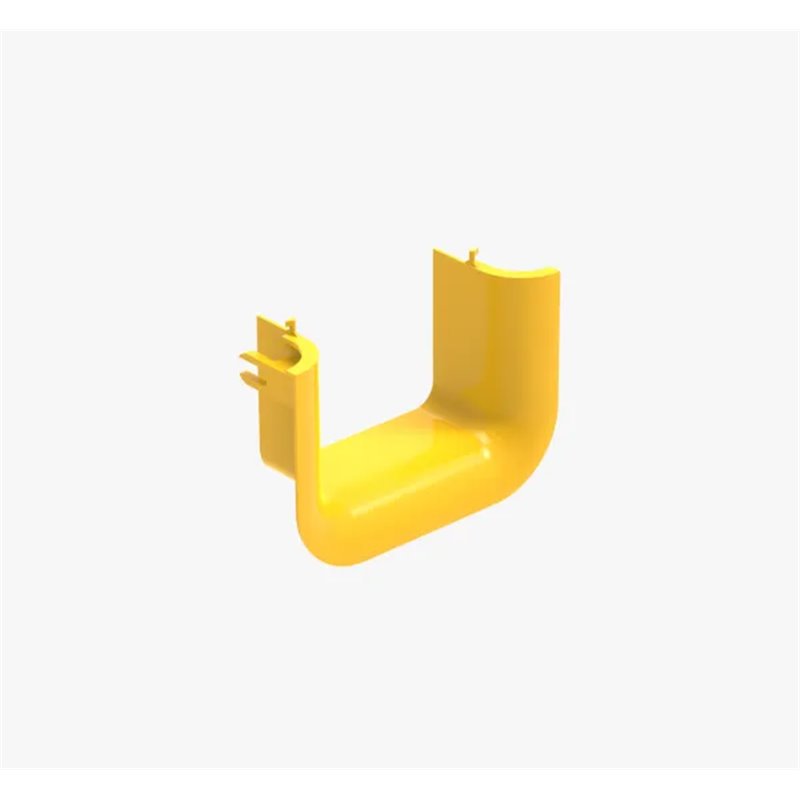

The CF120-TSP is a trumpet-flared transition/separation piece for the CF120 fibre tray range, part of Cableaway's CF120–CF600 fibre tray and ducting raceway system. Fitted where fibre cable exits the tray — into a cabinet, rack or riser — the flared trumpet mouth maintains the fibre's minimum bend radius as it transitions from the enclosed raceway to open cable, and separates individual fibre bundles cleanly for termination.
TECHNICAL SPECIFICATIONS
|
KEY FEATURES
|
TYPICAL APPLICATIONS
|
Data centre fibre distribution
|
ODF-to-cabinet optical raceways
|
|
Telecommunications exchanges
|
Campus and building fibre backbones
|
|
Comms rooms & MDF/IDF risers
|
Structured cabling fit-outs
|
ORDERING INFORMATION
| Part Number | CF120-TSP |
| Description | CF120 Fibre Tray Trumpet Separation Piece, Yellow |
| Used With | CF120-2000, CF120 series straight lengths and fittings |
| Warranty | Manufacturer's warranty |
COMPLIANCE & INSTALLATION
Flame-retardant ABS construction rated to GB/T2048-2008 FV-0. Fit at tray exit points before fibre optic cable is laid, in accordance with structured cabling and fibre optic installation practice.
| Standards | GB/T2048-2008 (FV-0 Flame Retardant) |
| Installation | Should be installed by an authorised installer or qualified data/communications cabler in accordance with AS/NZS 3080 (Telecommunications Cabling) and manufacturer fibre bend-radius guidelines |
CF120-TSP
