IP Rated Outlet Box Brass 1 X 10amp Auto Switched Outlet

IP 66 Rated Outlet Box Brass 1 X 10amp Auto Switched Outlet

Complete with Brass Lid, 1 x Auto Switched Outlet, IP66 Rated Floor Box.

Available on Request Mechanism Holding Unit (Allen Key Locking System)

FOBBR1P-IP66


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

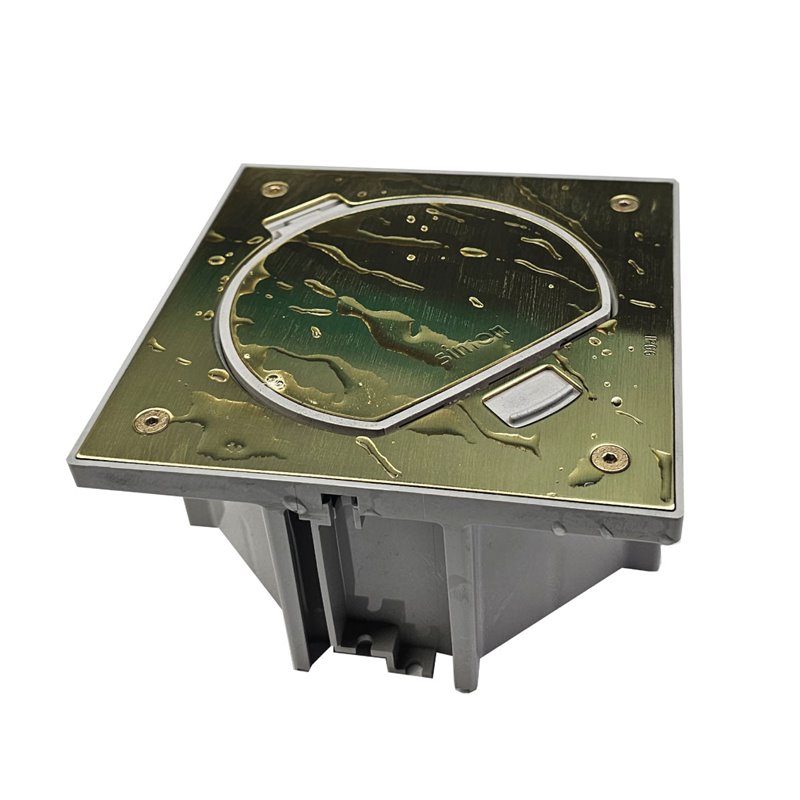

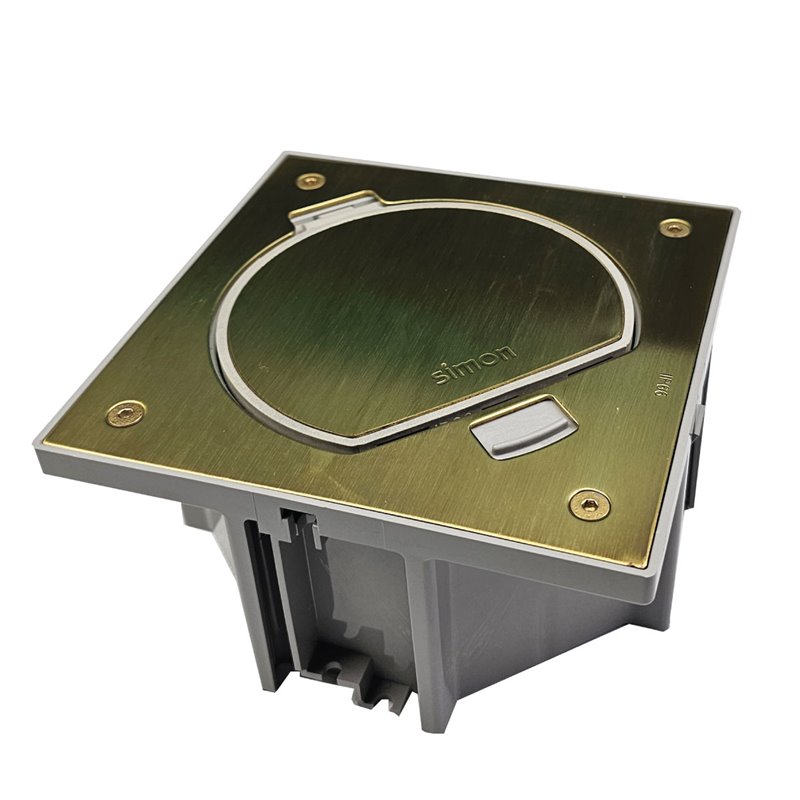

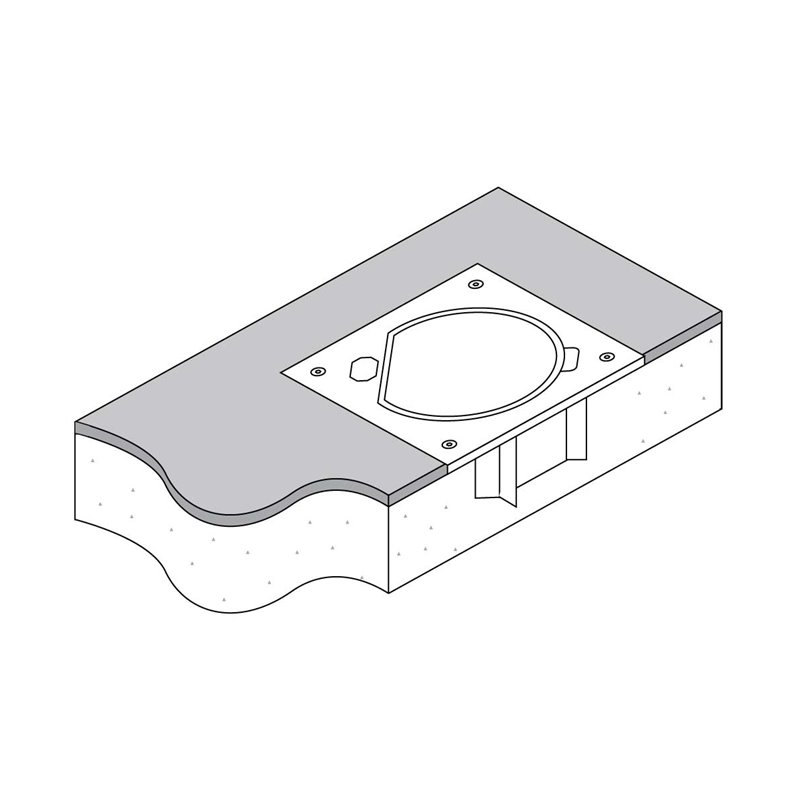

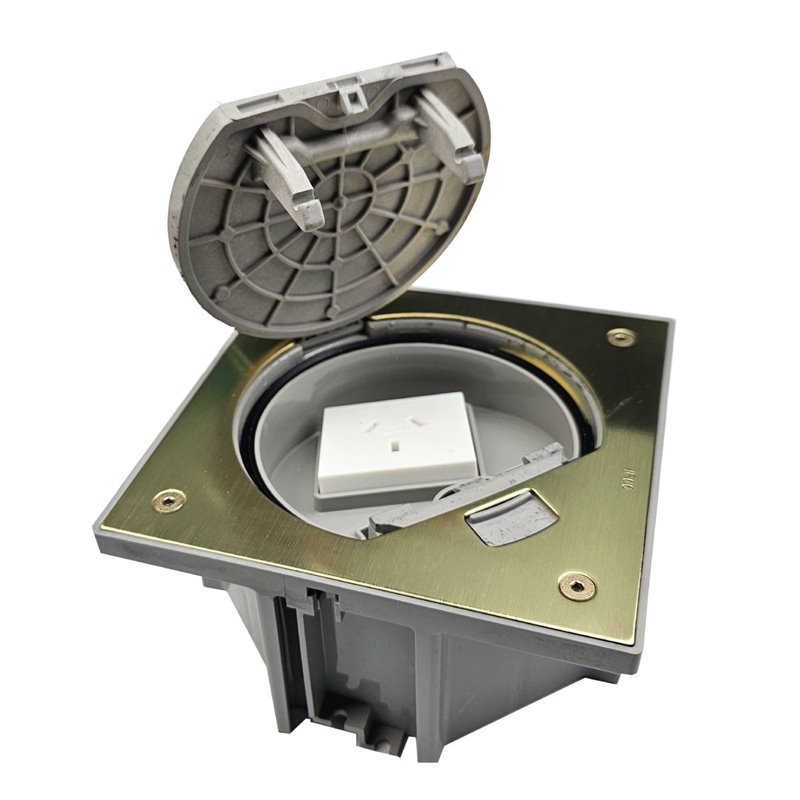

The FOBBR1P-IP66 is an IP66 rated in-floor outlet box with a brass flush lid, holding 1 x 10A Auto Switched Outlet. Designed for installation in a poured concrete slab, it uses a fireproof thermoplastic box body with an MDF temporary lid that protects the unit from concrete slurry during the pour, and is fitted with a standard (non-locking) lid.

TECHNICAL SPECIFICATIONS

Component In-Floor Outlet Box
Lid Material Brass
Outlet Configuration 1 x 10A Auto Switched Outlet
Mechanism Holding Unit 130mm x 130mm
Box Body Fireproof thermoplastic, 135mm x 135mm x 69mm nom. deep
Concrete Block-Out (Cut-Out) 155mm x 155mm x 79mm nom.
Lid Lock Standard (non-locking) lid

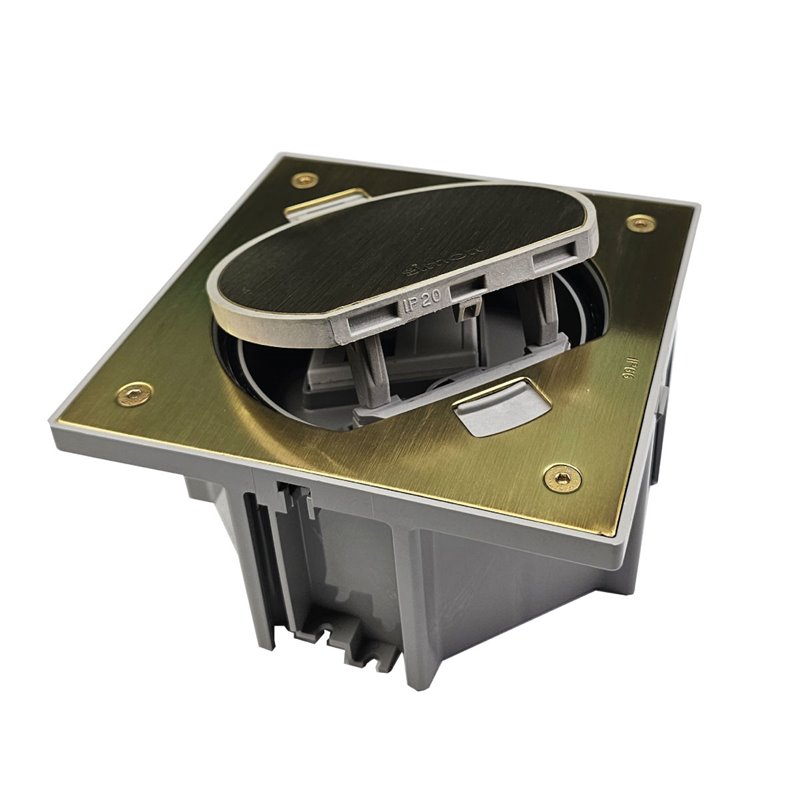

Ingress Protection (typical for this class) IP66 closed / IP20 in use
Load Rating (typical for this class) Up to 1000kg closed / 170kg open

KEY FEATURES

● MDF temporary lid protects the unit from slurry during the concrete pour
● Fireproof thermoplastic box body for in-slab installation
● Brass flush lid finish for a discreet, durable floor-level fitting
● Simple flush-fitting lid for everyday access
● IP66 sealed when closed, keeping the outlet protected from dust and water
● Rated to carry foot and light wheeled traffic when closed

TYPICAL APPLICATIONS

● Commercial Offices & Open-Plan Fit-Outs ● Retail & Shopping Centres
● Airports & Transport Hubs ● Conference & Exhibition Centres
● Boardrooms & Meeting Rooms ● Foyers & Reception Areas

ORDERING INFORMATION

Part Number FOBBR1P-IP66
Series IP Rated Floor Outlet Box
Lid Material Brass
Outlet 1 x 1 x 10A Auto Switched Outlet
Lock Standard
Warranty Manufacturer's warranty
FOBBR1P-IP66

Data sheet

FLOOR BOX LID TYPE
FLUSH FINISH LID SECTION
FLOOR BOX LID FINISH TYPE
IP RATED / WATER RESISTANT
POWER OUTLET CAPACITY
1 - 4 SINGLE AUTO SWITCHED POWER OUTLETS
