2 Pole Male Panel Mount Connector

2 Pole Male Panel Mount Connector

2 Pole Male Panel Mount Connector 16 amp rated.

EPNS0024


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

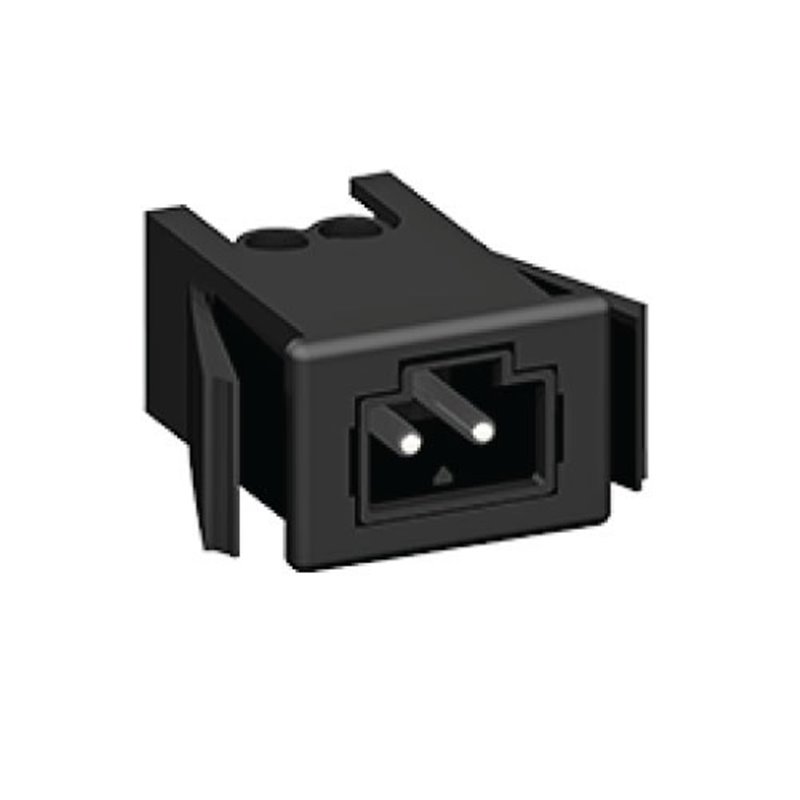

The 2 Pole Male Panel Mount Connector is a snap-in, panel-mounted plug fitted with positive-locking 2 pole contacts, designed for use within Cableaway's 2 Pole Soft Wiring System. 16 amp rated, with a durable polyamide body and silver-plated brass contacts for reliable, repeatable connections.

TECHNICAL SPECIFICATIONS

Connector Type Snap-Lock Panel Mount Connector (Male)
Poles 2 Pole
Rated Current 16 Amp rated
Body Material Polyamide
Contacts Silver-plated brass
Locking Positive locking system
Colour Options Black, White, Black/Sky Blue, Black/Brown

KEY FEATURES

  • Quick, tool-free plug-and-play panel mount connection
  • Positive locking system confirms safe engagement
  • Silver-plated brass contacts for reliable conductivity
  • Durable polyamide body for long service life
  • Four colour options available for circuit identification
  • Compatible with Cableaway's 2 Pole Soft Wiring System

TYPICAL APPLICATIONS

Modular Office Partitioning Service Columns and Poles
Under-Floor and In-Ceiling Power Distribution Data Cabinets and Communications Racks
Commercial Fit-Outs Retail and Hospitality Fit-Outs

ORDERING INFORMATION

Available in four colour options, each with its own Reference code:

Black EPNS0024
White EPNS0025
Black/Sky Blue EPNS0028
Black/Brown EPNS0029
Warranty Manufacturer's warranty

COMPLIANCE & CERTIFICATION

Coupler / Connector Standard AS/NZS 61535.1 — installation couplers
Rating 16A, 2 pole
Installation Licensed electrician required per AS/NZS 3000

Cableaway reserves the right to alter specifications without notice. Consult a licensed electrician for installation.
