2 Pole Female Plug Connector
2 Pole Female Plug Connector 16 amp rated.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.

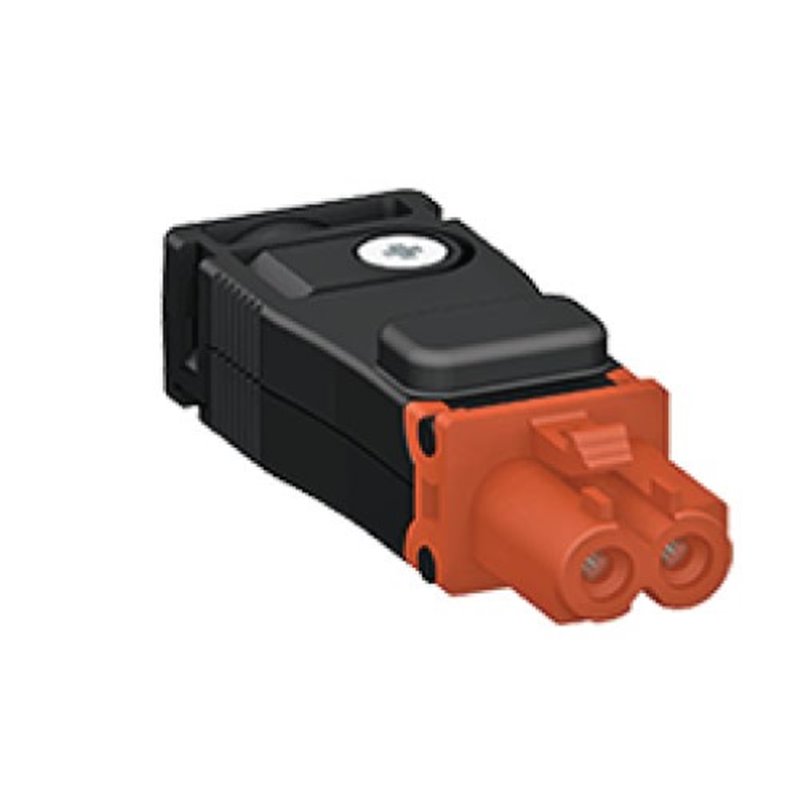

The 2 Pole Female Plug Connector is a rewireable, cable-end connector fitted with positive-locking 2 pole contacts, designed for use within Cableaway's 2 Pole Soft Wiring System. 16 amp rated, with screw terminals for on-site cable termination, a durable polyamide body, and silver-plated brass contacts for reliable, repeatable connections.
TECHNICAL SPECIFICATIONS
| Connector Type | Rewireable Plug Connector (Female) |
| Poles | 2 Pole |
| Rated Current | 16 Amp rated |
| Termination | Screw terminal, field rewireable |
| Body Material | Polyamide |
| Contacts | Silver-plated brass |
| Locking | Positive locking system |
| Colour Options | Black, White, Black/Sky Blue, Black/Brown |
KEY FEATURES
- Field-rewireable screw terminals for on-site cable termination
- Positive locking system confirms safe engagement
- Silver-plated brass contacts for reliable conductivity
- Durable polyamide body for long service life
- Four colour options available for circuit identification
- Compatible with Cableaway's 2 Pole Soft Wiring System
TYPICAL APPLICATIONS
| Modular Office Partitioning | Service Columns and Poles |
| Under-Floor and In-Ceiling Power Distribution | Data Cabinets and Communications Racks |
| Commercial Fit-Outs | Retail and Hospitality Fit-Outs |
ORDERING INFORMATION
Available in four colour options, each with its own Reference code:
| Black | EPN0034 |
| White | EPN0035 |
| Black/Sky Blue | EPN0038 |
| Black/Brown | EPN0039 |
| Warranty | Manufacturer's warranty |
COMPLIANCE & CERTIFICATION
| Coupler / Connector Standard | AS/NZS 61535.1 — installation couplers |
| Rating | 16A, 2 pole |
| Installation | Licensed electrician required per AS/NZS 3000 |
Cableaway reserves the right to alter specifications without notice. Consult a licensed electrician for installation.
