2 Pole T Splitter 1 in 2 Out
2 Pole T Splitter 1 in 2 Out 16 amp rated.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.

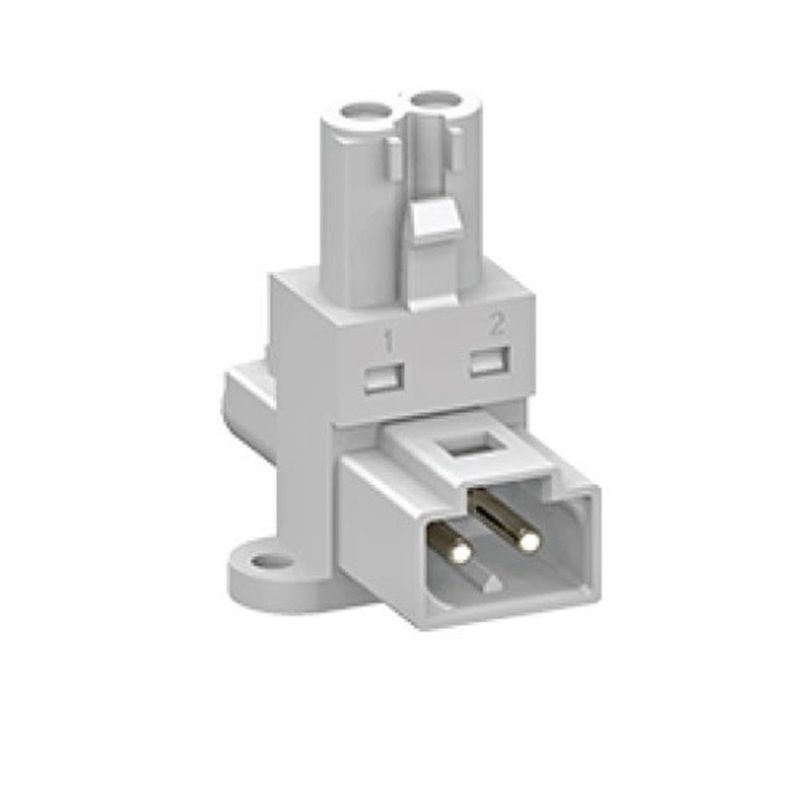

The 2 Pole T Splitter is a 1 in – 2 out distributor fitted with positive-locking 2 pole contacts, designed to branch a single 2 Pole Soft Wiring System circuit into two outputs. 16 amp rated, with a durable polyamide body and silver-plated brass contacts for reliable, repeatable connections.
TECHNICAL SPECIFICATIONS
| Connector Type | T Splitter / Distributor, 1 in – 2 out |
| Poles | 2 Pole |
| Rated Current | 16 Amp rated |
| Body Material | Polyamide |
| Contacts | Silver-plated brass |
| Locking | Positive locking system |
| Colour Options | Black, White, Brown |
KEY FEATURES
- Splits one circuit into two outputs without cutting into the main run
- Quick, tool-free plug-and-play connection
- Positive locking system confirms safe engagement
- Silver-plated brass contacts for reliable conductivity
- Three colour options available for circuit identification
- Compatible with Cableaway's 2 Pole Soft Wiring System
TYPICAL APPLICATIONS
| Modular Office Partitioning | Service Columns and Poles |
| Under-Floor and In-Ceiling Power Distribution | Data Cabinets and Communications Racks |
| Commercial Fit-Outs | Retail and Hospitality Fit-Outs |
ORDERING INFORMATION
Available in three colour options, each with its own Reference code:
| Black | EPNT004 |
| White | EPNT005 |
| Brown | EPNT009 |
| Warranty | Manufacturer's warranty |
COMPLIANCE & CERTIFICATION
| Coupler / Connector Standard | AS/NZS 61535.1 — installation couplers |
| Rating | 16A, 2 pole |
| Installation | Licensed electrician required per AS/NZS 3000 |
Cableaway reserves the right to alter specifications without notice. Consult a licensed electrician for installation.
