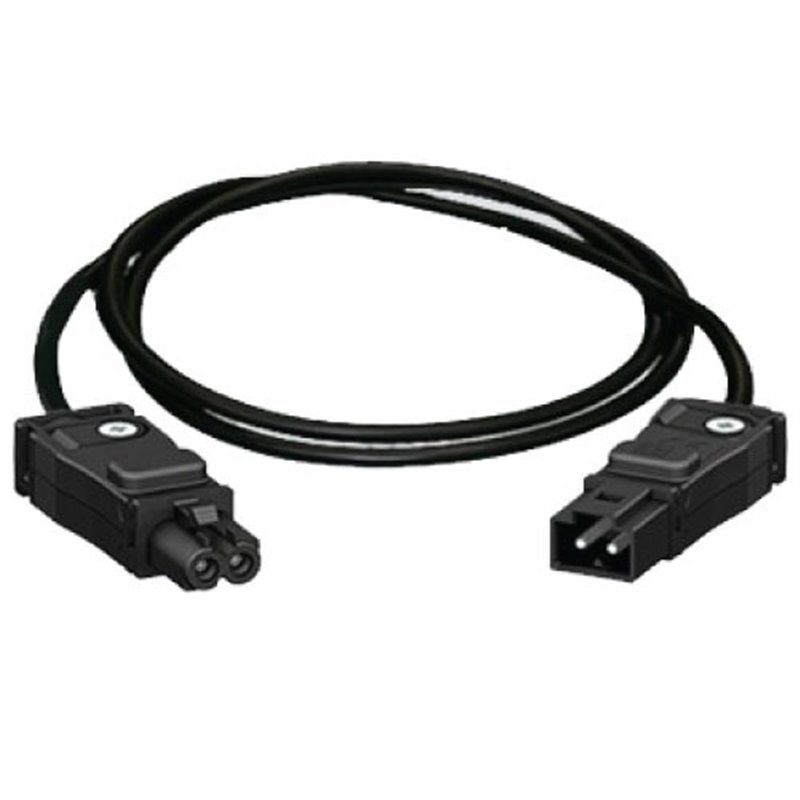

2 Pole Interconnecting lead Black

1m 2 Pole Interconnecting Lead Black

2 Pole Interconnecting lead 1.5mm square Cable 1m (16 amp rated).

EPN1521B


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

The 2 Pole Interconnecting Lead is a pre-assembled cable fitted with male and female 2 pole locking connectors, designed for daisy-chain connection within Cableaway's 2 Pole Soft Wiring System. 1.5mm² cable, 16 amp rated, available in a range of standard lengths from 0.5m to 5m, or made to measure on request.

TECHNICAL SPECIFICATIONS

Cable Type 2 Pole Interconnecting Lead, Black
Poles 2 Pole
Cable Size 1.5mm² flexible cable
Rated Current 16 Amp rated
Connectors Male & female 2 pole locking connectors, factory fitted
Length Options 0.5m, 1m, 2m, 3m, 4m, 5m, or made to measure

KEY FEATURES

  • Factory-terminated for quick, tool-free plug-and-play connection
  • Positive locking connectors confirm safe engagement
  • Wide range of standard lengths, plus made-to-measure option
  • Compatible with Cableaway's 2 Pole Soft Wiring System

TYPICAL APPLICATIONS

Modular Office Partitioning Service Columns and Poles
Under-Floor and In-Ceiling Power Distribution Data Cabinets and Communications Racks
Commercial Fit-Outs Retail and Hospitality Fit-Outs

ORDERING INFORMATION

Available in the following lengths, each with its own Reference code:

0.5m EPN1520.5B
1m EPN1521B
2m EPN1522B
3m EPN1523B
4m EPN1524B
5m EPN1525B
Made to Measure EPNSPEC — contact 02 8006 4244 for custom lengths
Warranty Manufacturer's warranty

COMPLIANCE & CERTIFICATION

Cable Standard AS/NZS 60227.5 — PVC insulated flexible cable
Coupler / Connector Standard AS/NZS 61535.1 — installation couplers
Rating 16A, 2 pole, 1.5mm² flexible cable
Installation Licensed electrician required per AS/NZS 3000

Cableaway reserves the right to alter specifications without notice. Consult a licensed electrician for installation.
