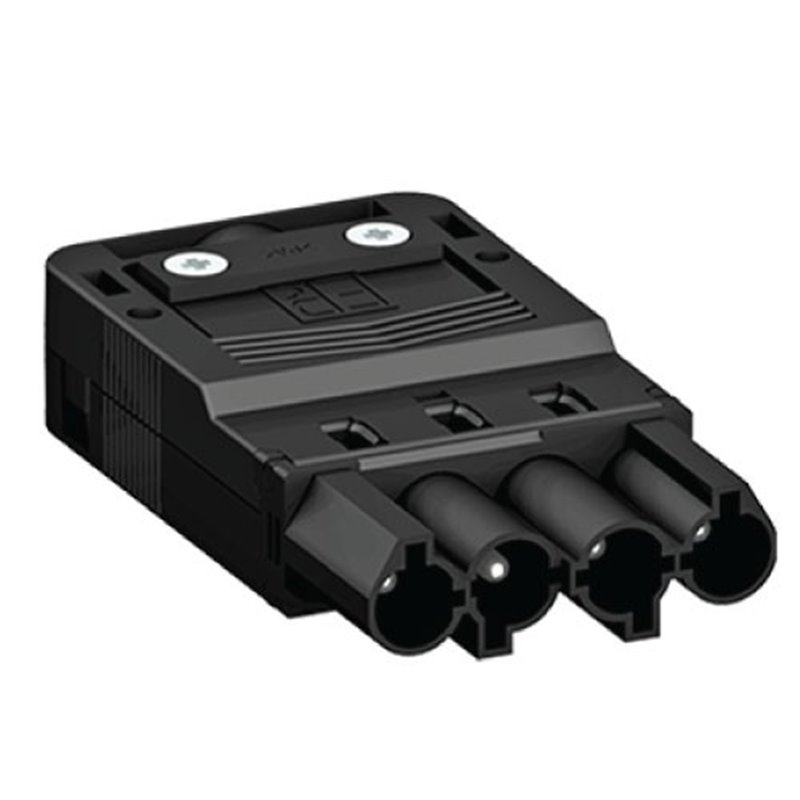

4 Pole Male Connectors ( Push in Terminal)

4 Pole Male Connector (Screwed Terminal) - SWN1205

4 Pole Male Connectors (Screwed Terminal) available in Black and White.

4 Pole Male Connector White: SWN1205



EPN1204


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

The 4 Pole Male Connector is a rewireable, cable-end connector fitted with positive-locking 4 pole contacts, designed for circuits within Cableaway's 4 Pole Soft Wiring System that need an extra switched or active conductor beyond the standard 3 Pole setup. 20 amp rated, with screw terminals for on-site cable termination, a durable polyamide body, and silver-plated brass contacts for reliable, repeatable connections.

TECHNICAL SPECIFICATIONS

Connector Type Rewireable Plug Connector (Male)
Poles 4 Pole
Rated Current 20 Amp rated
Rated Voltage 250V AC
Termination Screw terminal, field rewireable, 0.5–2.5mm² cable
Body Material Polyamide
Contacts Silver-plated brass
Locking Positive locking system
Colour Options Black, White

KEY FEATURES

  • Field-rewireable screw terminals for on-site cable termination
  • Positive locking system confirms safe engagement
  • Silver-plated brass contacts for reliable conductivity
  • Durable polyamide body for long service life
  • Extra 4th pole for switched or active circuits beyond standard 3 Pole
  • Compatible with Cableaway's 4 Pole Soft Wiring System

TYPICAL APPLICATIONS

Modular Office Partitioning Service Columns and Poles
Switched Power & Extra-Circuit Runs Data Cabinets and Communications Racks
Commercial Fit-Outs Retail and Hospitality Fit-Outs

ORDERING INFORMATION

Available in two colour options, each with its own Reference code:

Black EPN1204
White SWN1205
Warranty Manufacturer's warranty

COMPLIANCE & CERTIFICATION

Coupler / Connector Standard AS/NZS 61535.1 — installation couplers
Rating 20A, 4 pole, 250V AC
Installation Licensed electrician required per AS/NZS 3000

Cableaway reserves the right to alter specifications without notice. Consult a licensed electrician for installation.
