5 Pole Distribution Block 1 in 3 out

5 Pole Distribution Block 1 in 3 out

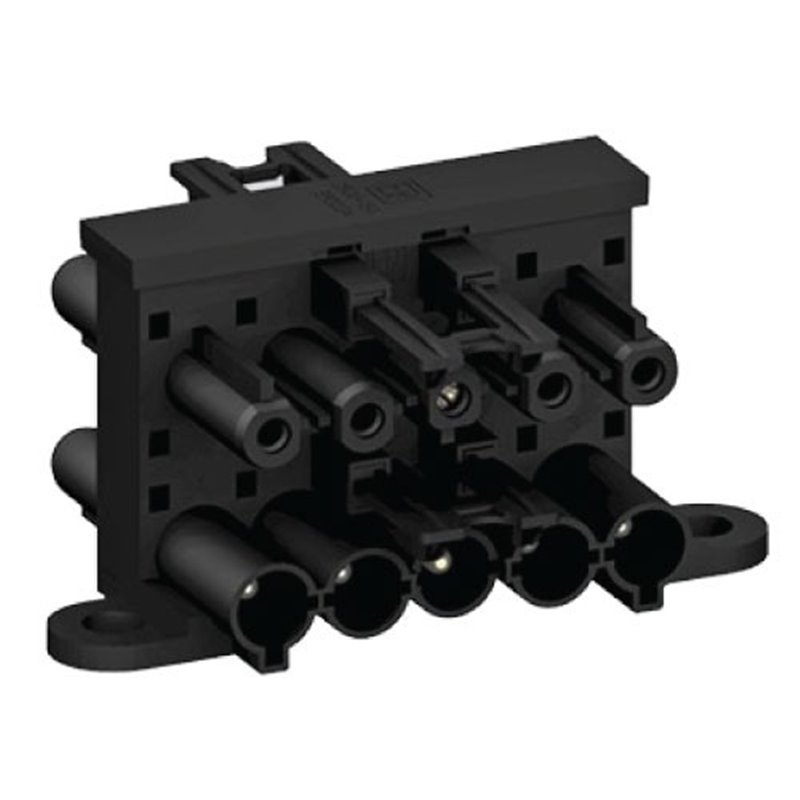

5 Pole Distribution Block 1 in 3 out Black. Also available in White

EPD034


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

The 5 Pole Distribution Block (1 in 3 out) splits a single 5 pole power feed into three outputs, letting one supply run daisy-chained equipment or split to separate circuits within Cableaway's 5 Pole Soft Wiring Power Distribution System. 20 amp rated, with screw terminals, a durable polyamide body, and silver-plated brass contacts for reliable, repeatable connections.

TECHNICAL SPECIFICATIONS

Block Type Distribution Block, 1 In 3 Out
Poles 5 Pole
Rated Current 20 Amp rated
Rated Voltage 250V AC
Termination Screw terminal, field rewireable, 0.5–2.5mm² cable
Body Material Polyamide
Contacts Silver-plated brass
Colour Options Black, White

KEY FEATURES

  • Splits one 5 pole supply into three outputs from a single distribution block
  • Field-rewireable screw terminals for on-site cable termination
  • Silver-plated brass contacts for reliable conductivity
  • Durable polyamide body for long service life
  • Compatible with Cableaway's 5 Pole Soft Wiring Power Distribution System

TYPICAL APPLICATIONS

Modular Office Partitioning Service Columns and Poles
Splitting a Single Supply into Multiple Circuits Data Cabinets and Communications Racks
Commercial Fit-Outs Retail and Hospitality Fit-Outs

ORDERING INFORMATION

Black EPD034
Warranty Manufacturer's warranty

COMPLIANCE & CERTIFICATION

Coupler / Connector Standard AS/NZS 61535.1 — installation couplers
Rating 20A, 5 pole, 250V AC
Installation Licensed electrician required per AS/NZS 3000

Cableaway reserves the right to alter specifications without notice. Consult a licensed electrician for installation.

EPD034
