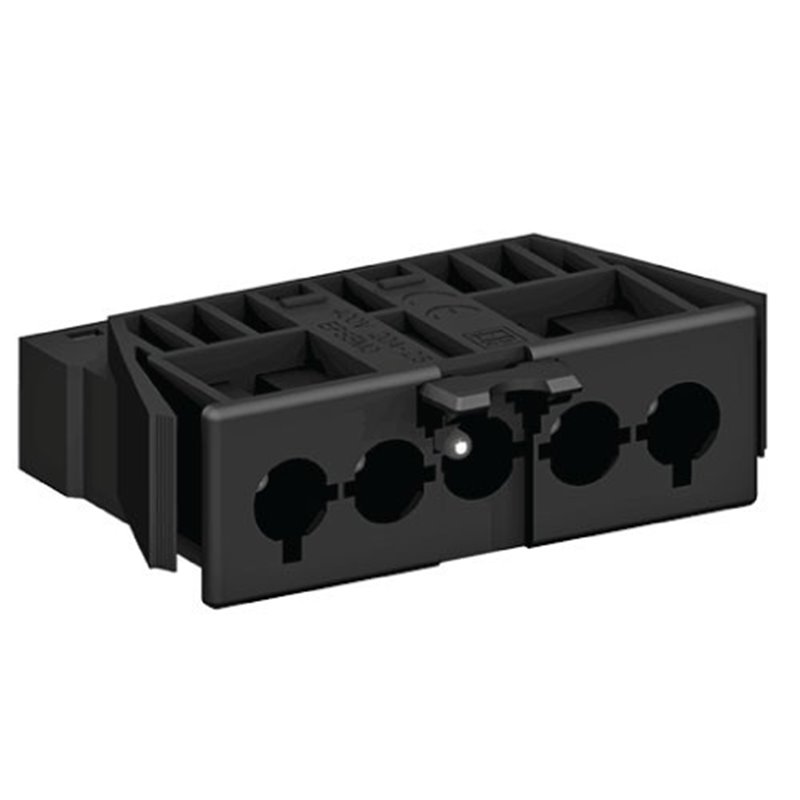

5 Pole Male Snap Connector
5 Pole Male Snap Connector (PUSH IN TERMINAL) Also available in White.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.
The 5 Pole Male Snap Connector is a push-in terminal, cable-end connector fitted with positive-locking 5 pole contacts, designed for circuits within Cableaway's 5 Pole Soft Wiring Power Distribution System that need power plus additional switched or control conductors. 20 amp rated, with tool-free push-in terminals for fast on-site cable termination, a durable polyamide body, and silver-plated brass contacts for reliable, repeatable connections.
TECHNICAL SPECIFICATIONS
| Connector Type | Snap Connector (Male), Push-in Terminal |
| Poles | 5 Pole |
| Rated Current | 20 Amp rated |
| Rated Voltage | 250V AC |
| Termination | Push-in terminal, tool-free, 0.5–2.5mm² cable |
| Body Material | Polyamide |
| Contacts | Silver-plated brass |
| Locking | Positive locking system |
| Colour Options | Black, White |
KEY FEATURES
- Tool-free push-in terminals for fast on-site cable termination
- Positive locking system confirms safe engagement
- Silver-plated brass contacts for reliable conductivity
- Durable polyamide body for long service life
- Compatible with Cableaway's 5 Pole Soft Wiring Power Distribution System
TYPICAL APPLICATIONS
| Modular Office Partitioning | Service Columns and Poles |
| Switched Power & Extra-Circuit Runs | Data Cabinets and Communications Racks |
| Commercial Fit-Outs | Retail and Hospitality Fit-Outs |
ORDERING INFORMATION
| Black / White | EPS7304 |
| Warranty | Manufacturer's warranty |
COMPLIANCE & CERTIFICATION
| Coupler / Connector Standard | AS/NZS 61535.1 — installation couplers |
| Rating | 20A, 5 pole, 250V AC |
| Installation | Licensed electrician required per AS/NZS 3000 |
Cableaway reserves the right to alter specifications without notice. Consult a licensed electrician for installation.
EPS7304
