5 Pole Lighting Control Distribution Blocks
5 Pole Lighting Control Distribution Blocks (Tee configuration) Blue
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.

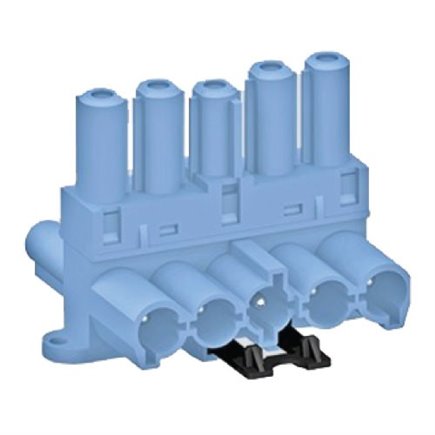

The 5 Pole Lighting Control Distribution Block splits a single lighting control feed into two, using a Tee configuration, for circuits within Cableaway's 5 Pole Soft Wiring Lighting Control range. Colour-coded Blue and compatible with most lighting control systems including DALI and Dynalite. 20 amp rated, with screw terminals, a durable polyamide body, and silver-plated brass contacts for reliable, repeatable connections.
TECHNICAL SPECIFICATIONS
| Block Type | Distribution Block, Tee Configuration (1 In 2 Out) |
| Poles | 5 Pole |
| Rated Current | 20 Amp rated |
| Rated Voltage | 250V AC |
| Termination | Screw terminal, field rewireable, 0.5–2.5mm² cable |
| Body Material | Polyamide |
| Contacts | Silver-plated brass |
| Colour | Blue (Lighting Control / DALI range) |
| Compatibility | DALI and Dynalite-compatible lighting control systems |
KEY FEATURES
- Splits one lighting control feed into two via a Tee configuration
- Field-rewireable screw terminals for on-site cable termination
- Colour-coded Blue so it can't be cross-connected with the standard Power Distribution range
- Silver-plated brass contacts for reliable conductivity
- Durable polyamide body for long service life
- Compatible with Cableaway's 5 Pole Soft Wiring Lighting Control range
TYPICAL APPLICATIONS
| DALI Lighting Control Circuits | Dynalite Lighting Control Circuits |
| Splitting a Single Lighting Control Feed | Modular Office Partitioning |
| Commercial Fit-Outs | Retail and Hospitality Fit-Outs |
ORDERING INFORMATION
| Blue | EPT038 |
| Warranty | Manufacturer's warranty |
COMPLIANCE & CERTIFICATION
| Coupler / Connector Standard | AS/NZS 61535.1 — installation couplers |
| Rating | 20A, 5 pole, 250V AC |
| Installation | Licensed electrician required per AS/NZS 3000 |
Cableaway reserves the right to alter specifications without notice. Consult a licensed electrician for installation.
