5 Pole Male Snap Connectors

5 Pole Male Lighting Control Snap Connectors

5 Pole Male Lighting Control Snap, Panel Mount Connectors (Blue)

EPS7308


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

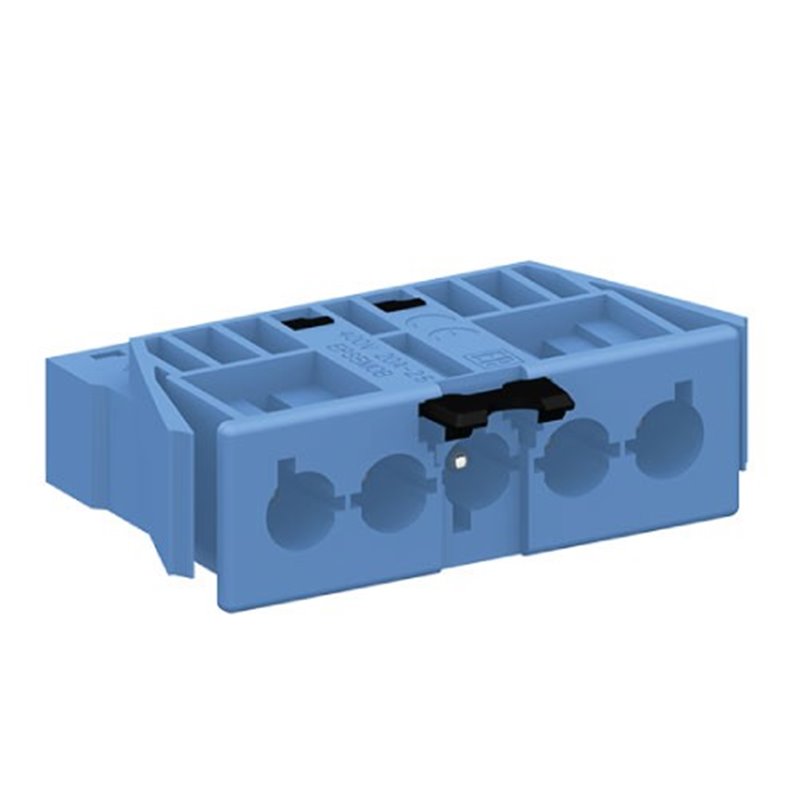

The 5 Pole Male Lighting Control Snap Connector is a panel-mounted, push-in terminal connector fitted with positive-locking 5 pole contacts, for lighting control circuits within Cableaway's 5 Pole Soft Wiring Lighting Control range. Colour-coded Blue and compatible with most lighting control systems including DALI and Dynalite. 20 amp rated, snaps into place without a screwdriver.

TECHNICAL SPECIFICATIONS

Connector Type Snap Connector (Male), Panel Mount, Push-in Terminal
Poles 5 Pole
Rated Current 20 Amp rated
Rated Voltage 250V AC
Termination Push-in terminal, tool-free, 0.5–2.5mm² cable
Body Material Polyamide
Contacts Silver-plated brass
Locking Snap-fit, tool-free installation
Colour Blue (Lighting Control / DALI range)
Compatibility DALI and Dynalite-compatible lighting control systems

KEY FEATURES

  • Snaps into a panel cut-out without a screwdriver for fast installation
  • Tool-free push-in terminals for fast on-site cable termination
  • Colour-coded Blue so it can't be cross-connected with the standard Power Distribution range
  • Silver-plated brass contacts for reliable conductivity
  • Durable polyamide body for long service life
  • Compatible with Cableaway's 5 Pole Soft Wiring Lighting Control range

TYPICAL APPLICATIONS

DALI Lighting Control Panels Dynalite Lighting Control Panels
Modular Office Partitioning Service Columns and Poles
Commercial Fit-Outs Retail and Hospitality Fit-Outs

ORDERING INFORMATION

Blue EPS7308
Warranty Manufacturer's warranty

COMPLIANCE & CERTIFICATION

Coupler / Connector Standard AS/NZS 61535.1 — installation couplers
Rating 20A, 5 pole, 250V AC
Installation Licensed electrician required per AS/NZS 3000

Cableaway reserves the right to alter specifications without notice. Consult a licensed electrician for installation.
