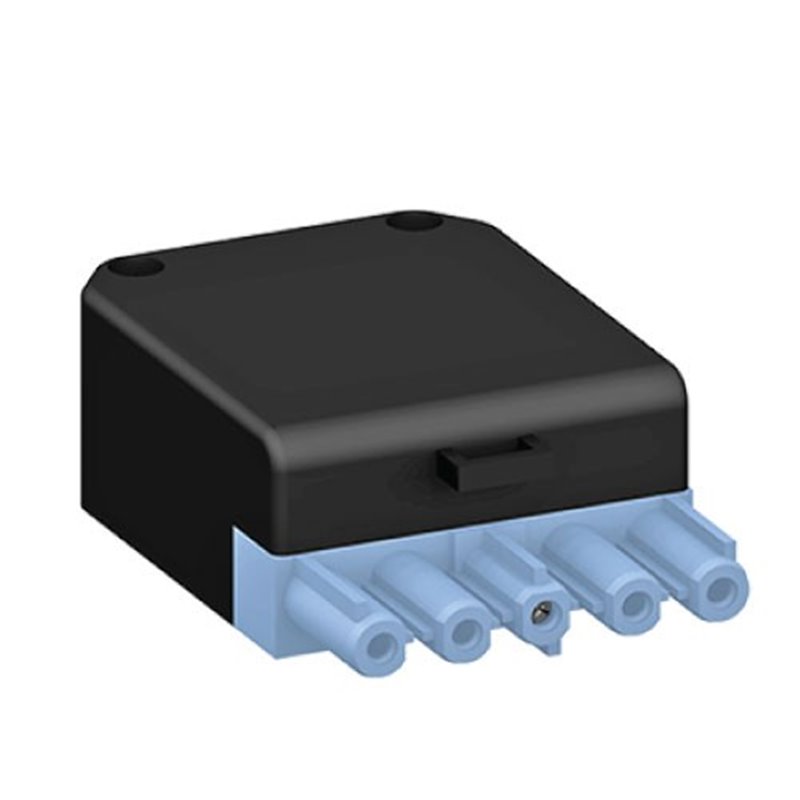

5 Pole Female Lighting Control Connector (Screwed Terminal)
5 Pole Female Lighting Control Connector (Screwed Terminal) Blue
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.
The 5 Pole Female Lighting Control Connector is a rewireable, panel-mounted connector fitted with positive-locking 5 pole contacts, for a permanent lighting control connection within Cableaway's 5 Pole Soft Wiring Lighting Control range. Colour-coded Blue and compatible with most lighting control systems including DALI and Dynalite. 20 amp rated, with screw terminals for on-site cable termination, a durable polyamide body, and silver-plated brass contacts for reliable, repeatable connections.
TECHNICAL SPECIFICATIONS
| Connector Type | Rewireable Panel Connector (Female), Screwed Terminal |
| Poles | 5 Pole |
| Rated Current | 20 Amp rated |
| Rated Voltage | 250V AC |
| Termination | Screw terminal, field rewireable, 0.5–2.5mm² cable |
| Body Material | Polyamide |
| Contacts | Silver-plated brass |
| Locking | Positive locking system |
| Colour | Blue (Lighting Control / DALI range) |
| Compatibility | DALI and Dynalite-compatible lighting control systems |
KEY FEATURES
- Field-rewireable screw terminals for a permanent panel connection
- Positive locking system confirms safe engagement
- Colour-coded Blue so it can't be cross-connected with the standard Power Distribution range
- Silver-plated brass contacts for reliable conductivity
- Durable polyamide body for long service life
- Compatible with Cableaway's 5 Pole Soft Wiring Lighting Control range
TYPICAL APPLICATIONS
| DALI Lighting Control Panels | Dynalite Lighting Control Panels |
| Modular Office Partitioning | Service Columns and Poles |
| Commercial Fit-Outs | Retail and Hospitality Fit-Outs |
ORDERING INFORMATION
| Blue | EPC1318 |
| Warranty | Manufacturer's warranty |
COMPLIANCE & CERTIFICATION
| Coupler / Connector Standard | AS/NZS 61535.1 — installation couplers |
| Rating | 20A, 5 pole, 250V AC |
| Installation | Licensed electrician required per AS/NZS 3000 |
Cableaway reserves the right to alter specifications without notice. Consult a licensed electrician for installation.
EPC1318
