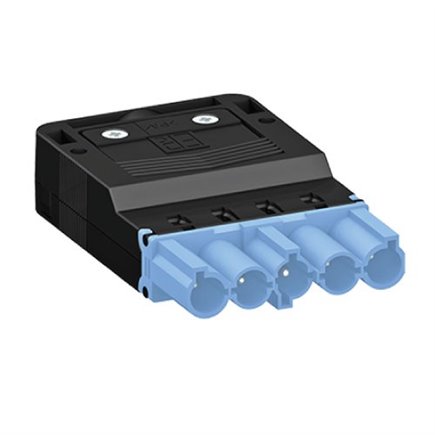

The 5 Pole Male Lighting Control Connector is a rewireable, panel-mounted connector fitted with positive-locking 5 pole contacts, for a permanent lighting control connection within Cableaway's 5 Pole Soft Wiring Lighting Control range. Colour-coded Blue and compatible with most lighting control systems including DALI and Dynalite. 20 amp rated, with screw terminals for on-site cable termination, a durable polyamide body, and silver-plated brass contacts for reliable, repeatable connections.
TECHNICAL SPECIFICATIONS
| Connector Type | Rewireable Panel Connector (Male), Screwed Terminal |
| Poles | 5 Pole |
| Rated Current | 20 Amp rated |
| Rated Voltage | 250V AC |
| Termination | Screw terminal, field rewireable, 0.5–2.5mm² cable |
| Body Material | Polyamide |
| Contacts | Silver-plated brass |
| Locking | Positive locking system |
| Colour | Blue (Lighting Control / DALI range) |
| Compatibility | DALI and Dynalite-compatible lighting control systems |
KEY FEATURES
- Field-rewireable screw terminals for a permanent panel connection
- Positive locking system confirms safe engagement
- Colour-coded Blue so it can't be cross-connected with the standard Power Distribution range
- Silver-plated brass contacts for reliable conductivity
- Durable polyamide body for long service life
- Compatible with Cableaway's 5 Pole Soft Wiring Lighting Control range
TYPICAL APPLICATIONS
| DALI Lighting Control Panels | Dynalite Lighting Control Panels |
| Modular Office Partitioning | Service Columns and Poles |
| Commercial Fit-Outs | Retail and Hospitality Fit-Outs |
ORDERING INFORMATION
| Blue | EPN1308 |
| Warranty | Manufacturer's warranty |
COMPLIANCE & CERTIFICATION
| Coupler / Connector Standard | AS/NZS 61535.1 — installation couplers |
| Rating | 20A, 5 pole, 250V AC |
| Installation | Licensed electrician required per AS/NZS 3000 |
Cableaway reserves the right to alter specifications without notice. Consult a licensed electrician for installation.
