Pathfinder Vertical Cable Management – Ceiling Collar, Weighted Base 2800mm
Ceiling-to-floor cable management for services distributed through the ceiling void — a clean ceiling collar pass-through at the top, standing on a weighted floor base, with power and data kept separate the whole way down.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.
Pathfinder is a flexible vertical cable management system built from interlocking 77mm segments that form a protective, articulated spine for power and data cables. Each segment is internally divided into two channels, so power cabling stays physically separated from data and network cabling along the full run. Pathfinder is available in Black or White, with a range of top and bottom fixings to suit almost any office layout.
This configuration runs Pathfinder from the ceiling void down to floor level — ideal where power and data services are distributed above the ceiling rather than under the floor.
Specifications
| Configuration | SB4 — Ceiling Collar, Weighted Base (with tension kit) |
| Length | 2800mm |
| Segment diameter | 77mm |
| Top fixing | Ceiling collar (pass-through) + tension kit |
| Bottom fixing | Weighted floor base (freestanding, no floor fixing) |
| Cable segregation | Yes — separate power and data channels |
| Colour | Black / White |
Key Features
- ●Segment OD: 77mm
- ●Internal power/data segregation
- ●Available in Black or White
- ●Modular, articulated segments
- ●Compatible with Pathway cable tray
How It's Fixed

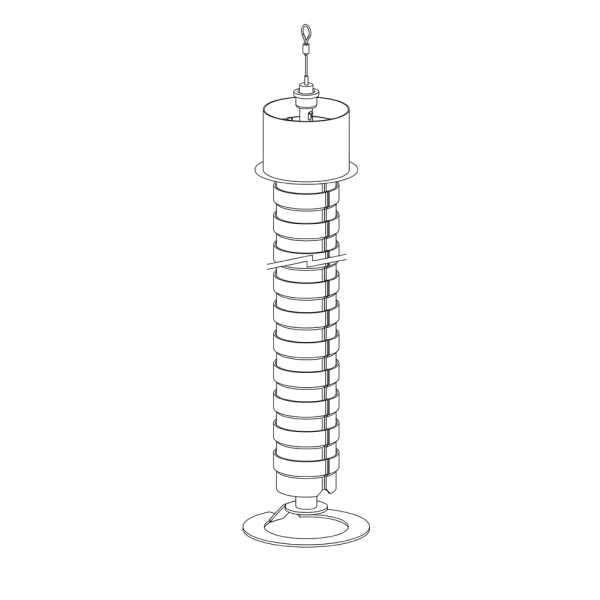

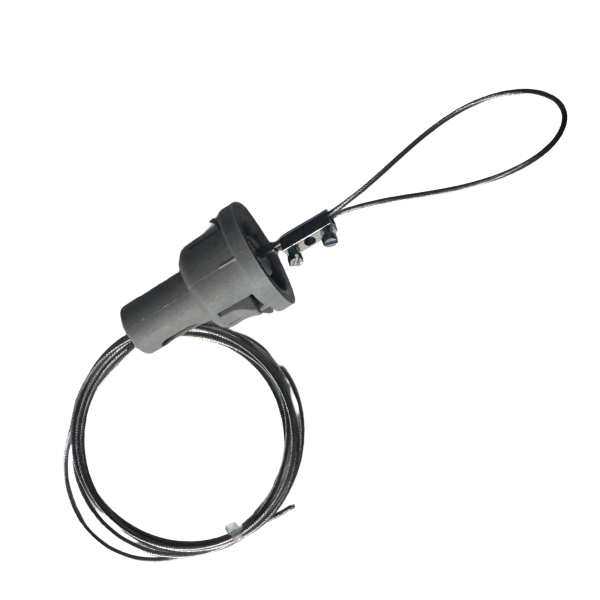

- ●Top: passes through a ceiling collar where it drops through the ceiling tile. The collar splits in half and clips around Pathfinder after it’s been hung and cables zipped in, for a clean finished look. The ceiling collar is a pass-through only — Pathfinder is tensioned and supported using the included tension kit, fixed above the ceiling line.
- ●Bottom: sits on the included weighted base at floor level.
Good For
Runs behind a workstation or alongside a partition where ceiling-distributed services need a protected, tidy path down to floor level, without fixing into the floor itself.
Need help choosing the right Pathfinder configuration? Call 1300 883 452 or email sales@cableaway.com.au.
