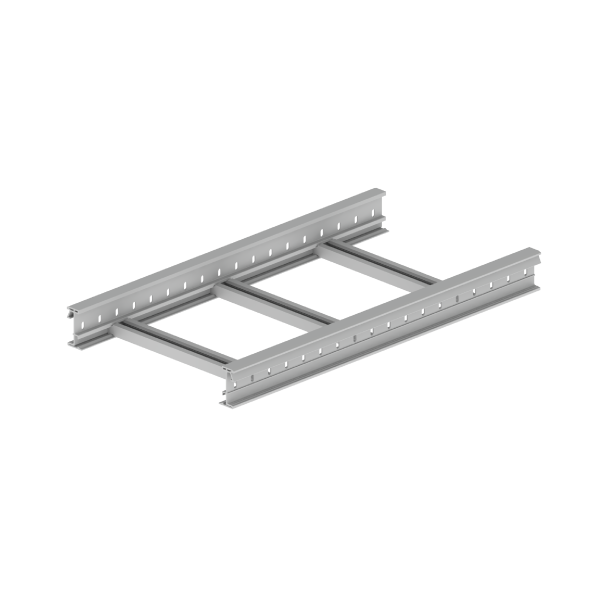

Unex Insulating Cable Ladder 85x500 U23X Grey

Unex Insulating Cable Ladder 85x500 U23X Grey

Insulating cable ladder for support and distribution of large-calibre power and communication cables. 85mm x 500mm, U23X material, grey RAL 7035. Suitable for outdoors, corrosion resistant, assures electrical safety.

67500


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

The 67500 insulating cable ladder, 85x500mm, U23X material, grey RAL 7035, in 3m lengths with rungs every 300mm. For support and distribution of large-calibre power and communication cables in outdoor or indoor installations, including humid, saline and chemical environments.

TECHNICAL SPECIFICATIONS

Part Number 67500
Range Cable Ladder 67
Type Perforated Rung Ladder
Material U23X (PVC)
Colour Grey RAL 7035
Size (W x H) 85 x 500mm
Length 3m
Rung Spacing 300mm
Support Span (40°C) 2m
Support Span (60°C) 1.5m
Impact Resistance 20J at -20°C
Temperature Range -20°C to +60°C
Fire Rating Class M1, UL94 V0

KEY FEATURES

  • ● Insulating, electrically non-conductive - no earthing required
  • ● Inherently resistant to humid and saline corrosion
  • ● Open base design for better cable ventilation and less dirt holding
  • ● Non flame propagating, glow-wire tested to 960°C
  • ● RoHS II compliant

TYPICAL APPLICATIONS

Large power cable runs Industrial & commercial sites
Humid & saline environments Outdoor & indoor installations

ORDERING INFORMATION

Part Number 67500
Series Unex Cable Ladder 67
Warranty Manufacturer's warranty
67500

Data sheet

MATERIAL
U23X (PVC)
COLOUR
Grey RAL 7035
LENGTH
3m
LADDER SIZE (W x H)
85 x 500mm
