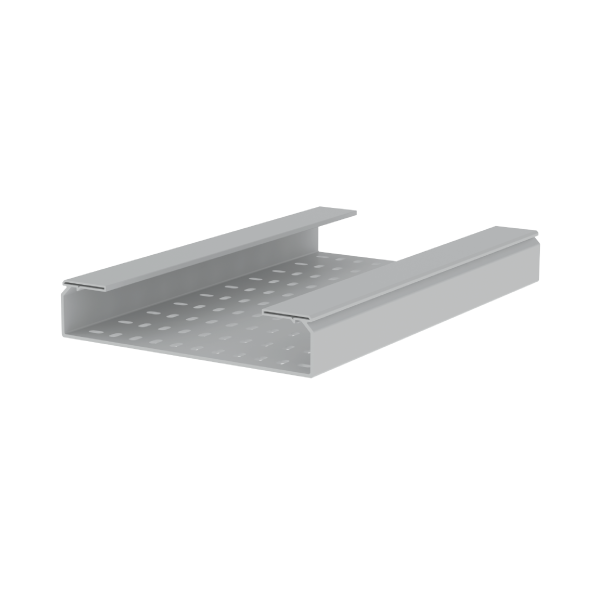

Unex Perforated Insulating Cable Tray 60x300 U23X Grey

Unex Perforated Insulating Cable Tray 60x300 U23X Grey

Insulating perforated cable tray for support, protection and conduction of cables. 60mm x 300mm, U23X material, grey RAL 7035. Suitable for outdoors, corrosion resistant, assures electrical safety.

66300


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

The 66300 insulating perforated cable tray, 60x300mm, U23X material, grey RAL 7035, in 3m lengths. For support, protection and conduction of small and medium-calibre power and communication cables in outdoor or indoor installations, including humid, saline and chemical environments.

TECHNICAL SPECIFICATIONS

Part Number 66300
Range Cable Tray 66
Type Perforated
Material U23X (PVC)
Colour Grey RAL 7035
Size (W x H) 60 x 300mm
Length 3m
Safe Working Load 33.7 kg/m
Impact Resistance 20J at -20°C
Temperature Range -20°C to +60°C
Fire Rating Class M1, UL94 V0

KEY FEATURES

  • ● Insulating, electrically non-conductive - no earthing required
  • ● Inherently resistant to humid and saline corrosion
  • ● Good performance outdoors with UV exposure
  • ● Non flame propagating, glow-wire tested to 960°C
  • ● RoHS II compliant

TYPICAL APPLICATIONS

Outdoor cable runs
Industrial & commercial sites
Humid & saline environments
Solar/PV Installations

ORDERING INFORMATION

Part Number 66300
Series Unex Cable Tray 66
Warranty Manufacturer's warranty
66300

Data sheet

MATERIAL
U23X (PVC)
COLOUR
Grey RAL 7035
TRAY SIZE (W x H)
60 x 300mm
LENGTH
3m
